Steel 75,000L Offroad Tanker
Steel 75,000L Offroad Tanker
Steel 75,000L Offroad Tanker
Steel 75,000L Offroad Tanker
Steel 75,000L Offroad Tanker
Steel 75,000L Offroad Tanker
Steel 75,000L Offroad Tanker
Steel 75,000L Offroad Tanker

• Australian made tank using premium grade Australian steel
• Colour match paint work to OEM chassis
• Internal Polyamine cured epoxy mastic coating
• Precision Flow Control baffling system

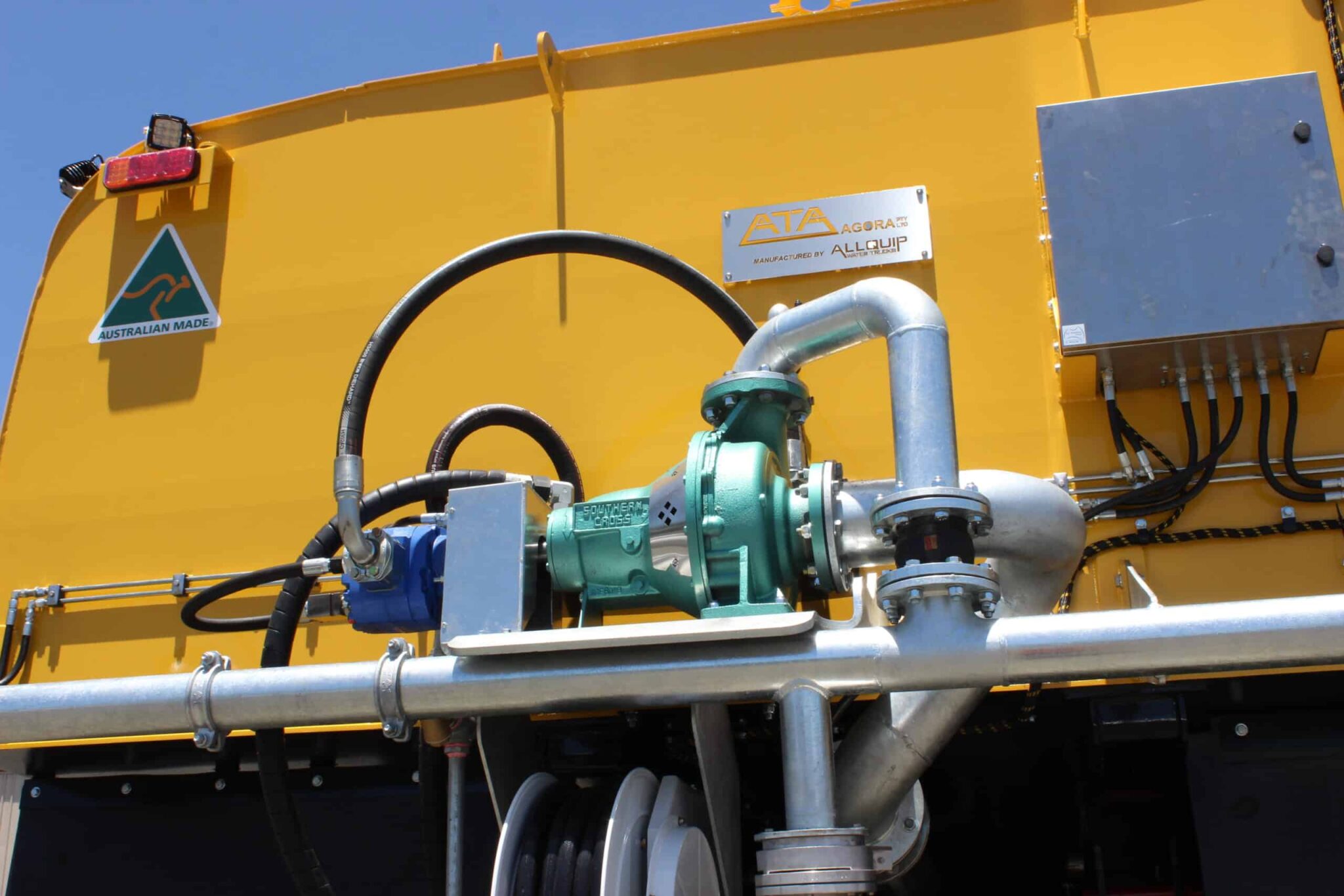

• Hydraulic driven 150mm Close-coupled Southern Cross water pump
• Three 80mm rear-mounted deflector fan spray heads (left, centre, right)
• Two 80mm rear- high mounted deflector fan spray heads (left, right)
• Hydraulic system powered by truck hoist circuit, with additional oil cooler
• In-cab control panel for spray functions, hydraulic pump and safety systems
• 20m Spring retract hose reel with adjustable nozzle
• 80mm pump outlet
• 80mm gravity drain
• Large fill rim provided for overhead gantry filling
• Rear Hella amber beacon and work light, operated via in-cab switches
• Mine-spec braided harness system throughout, using marine-grade wiring
• Taillights mounted top rear of body
• In-cab controlled electric water canon with adjustable nozzle
• 80mm hydrant top-fill system with regulation-compliant air gap and non-return valve

SUITABLE FOR WET ENVIRONMENTS

• Marine grade mdg15 wiring and harness as standard
• Hot dipped galvanised frame
• Corrosion proof tank options

BUILT FOR LESS DOWN TIME

• Pressure relief valve to prevent pump burn out
• In built pto cut off to protect hydraulics and pump
• Pneumatic open, spring closed valves
• Fan cooled hydraulic water pump

DESIGNED FOR EASY MAINTENANCE

• Removable cam lock spray heads
• Central fuse box and standard deutsch connector wiring harness
• Modular design for easy replacement and upgrade
• Roll grooved pipework joins (not welded)

FOCUS ON SAFETY AND COMPLIANCE

• Civil and Mine site specifications available to meet safety and compliance requirements across Australia
• Risk assessment available from factory
• Cap-res certification available from factory
• Back-flow certification available from factory

FLEXIBLE AND ERGONOMIC USE

• 360 Degree spray adjustment
• In-cab adjustable pump, independent of engine revolutions
• Rear controls with ergonomic lower height rear control panel

READY TO WORK FROM DAY ONE

• Factory fitted on site in the largest purpose built water truck manufacturing facility in Australia
• Every Allquip truck is available with all required compliance and certifications from factory. Your asset arrives ready to work on day one

• Industrial grade electric water cannon
• Additional front or rear spray heads
• Precise road delivery water allocation
• GPS / Telemetry and system monitoring
• Lights, beacons and electrical upgrades
• Cabin splash guard and sun visor
• Hi-vis vehicle tape and safety signage
• Corporate logo signage and decals

Steel 75,000L Offroad Tanker

With unmatched capacity, the 75,000L steel offroad tanker is purpose-built for 100-ton articulated and rigid dump trucks from all major OEMs. Constructed at Australia’s largest water truck facility, it combines modular engineering with premium spray systems and proven reliability. Factory-tested and certified, this tanker is designed for demanding operations where maximum water delivery and uptime are critical.

Key Features:

• Massive 75,000L modular steel tank, designed for 100-ton trucks
• Certified safe and compliant, ready to work from the factory
• Supported with Australia-wide service and 24/7 parts supply
• Rugged build ensures longevity in the toughest environments

Get a Quote
Call for Availability

Designed for Minimum Down Time

Safe and Easy to Operate

Site Compliant from Day One

Short Lead Times

Have more specific needs? Speak to our team today about customising your build
Get in Touch
Inclusions

• Australian made tank using premium grade Australian steel
• Colour match paint work to OEM chassis
• Internal Polyamine cured epoxy mastic coating
• Precision Flow Control baffling system
• Hydraulic driven 150mm Close-coupled Southern Cross water pump
• Three 80mm rear-mounted deflector fan spray heads (left, centre, right)
• Two 80mm rear- high mounted deflector fan spray heads (left, right)
• Hydraulic system powered by truck hoist circuit, with additional oil cooler
• In-cab control panel for spray functions, hydraulic pump and safety systems
• 20m Spring retract hose reel with adjustable nozzle
• 80mm pump outlet
• 80mm gravity drain
• Large fill rim provided for overhead gantry filling
• Rear Hella amber beacon and work light, operated via in-cab switches
• Mine-spec braided harness system throughout, using marine-grade wiring
• Taillights mounted top rear of body
• In-cab controlled electric water canon with adjustable nozzle
• 80mm hydrant top-fill system with regulation-compliant air gap and non-return valve

SUITABLE FOR WET ENVIRONMENTS

• Marine grade mdg15 wiring and harness as standard
• Hot dipped galvanised frame
• Corrosion proof tank options

BUILT FOR LESS DOWN TIME

• Pressure relief valve to prevent pump burn out
• In built pto cut off to protect hydraulics and pump
• Pneumatic open, spring closed valves
• Fan cooled hydraulic water pump

DESIGNED FOR EASY MAINTENANCE

• Removable cam lock spray heads
• Central fuse box and standard deutsch connector wiring harness
• Modular design for easy replacement and upgrade
• Roll grooved pipework joins (not welded)

FOCUS ON SAFETY AND COMPLIANCE

• Civil and Mine site specifications available to meet safety and compliance requirements across Australia
• Risk assessment available from factory
• Cap-res certification available from factory
• Back-flow certification available from factory

FLEXIBLE AND ERGONOMIC USE

• 360 Degree spray adjustment
• In-cab adjustable pump, independent of engine revolutions
• Rear controls with ergonomic lower height rear control panel

READY TO WORK FROM DAY ONE

• Factory fitted on site in the largest purpose built water truck manufacturing facility in Australia
• Every Allquip truck is available with all required compliance and certifications from factory. Your asset arrives ready to work on day one

• Industrial grade electric water cannon
• Additional front or rear spray heads
• Precise road delivery water allocation
• GPS / Telemetry and system monitoring
• Lights, beacons and electrical upgrades
• Cabin splash guard and sun visor
• Hi-vis vehicle tape and safety signage
• Corporate logo signage and decals
