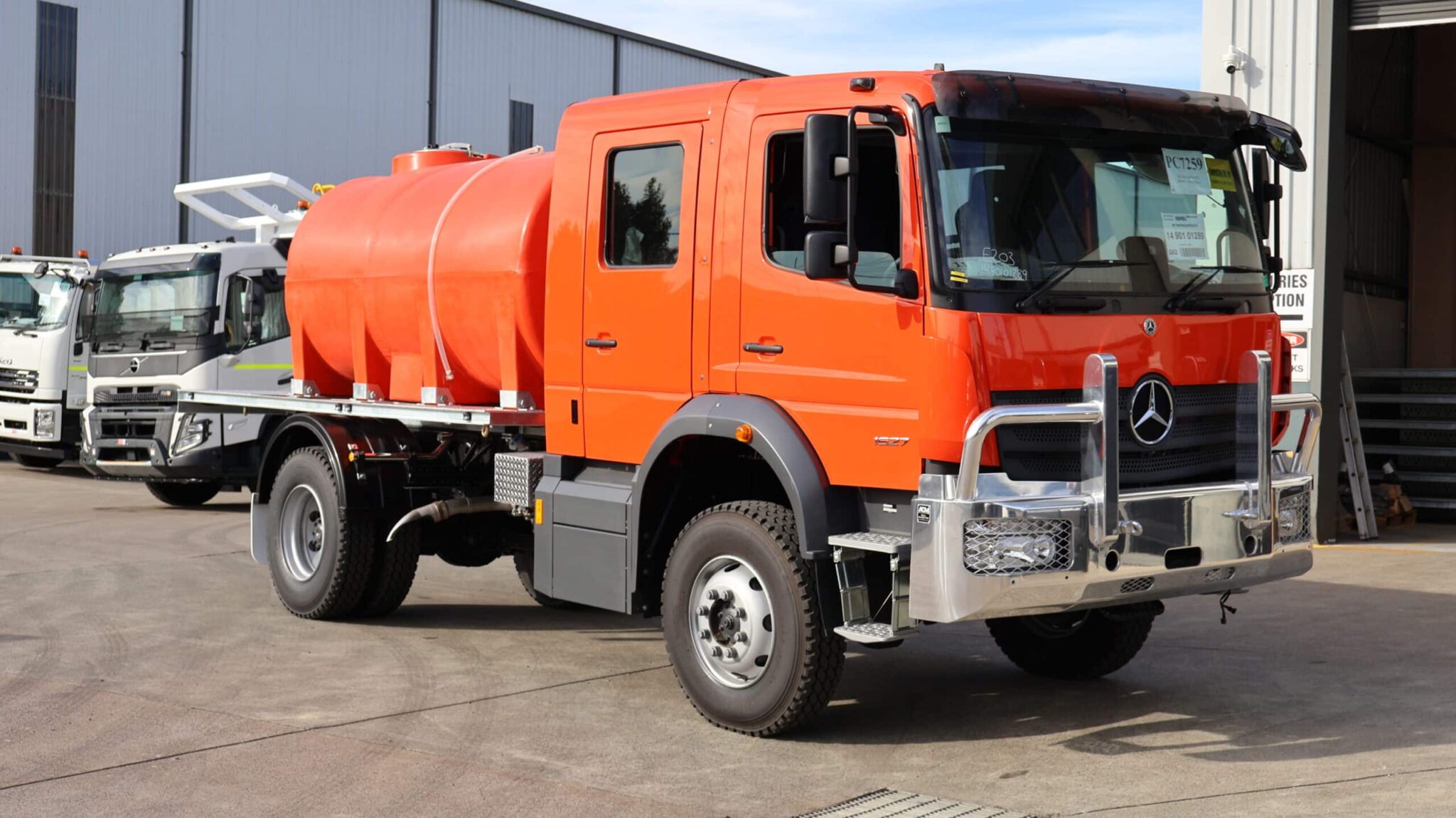

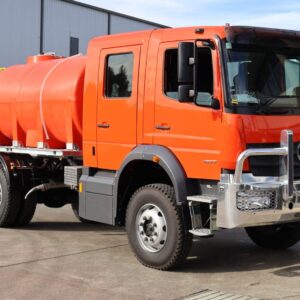

Fire Tanker Trucks Engineered for Rapid Response

Inclusions

• Heavy duty polyethelyne fire tanker
• Colour match paint work to fire department
• Precision Flow Control baffling system
• Hot-dip galvanized steel subframe
• Engineered to comply with NHVR
• Engineered weight distribution analysis
• Hot-shift PTO installed with configured safety parameters; hydraulic oil cooler system included
• PTO engagement switches positioned in-cab and at the rear control panels
• Close-coupled hydraulic drive water pump (Australian made) – 2,200LPM at 86PSI
• Pump speed controller allowing 0–100% flow adjustment
• 30m Electric hose reel with fire nozzle
• Pump outlet manifold with four valves
• Hydrant fill points
• Suction inlet for self-fill via water pump
• Suction and top-fill hose assembly kits supplied, including foot valve and strainer
• Hose storage trays mounted on both sides of the tank with securing straps
• Emergency lighting and work lights operated via control panels
• Hella LED tail and side marker lights mounted within steel subframe channels for protection
• Fire-spec braided harness system throughout, using marine-grade wiring
• Internal and External Emergency stop push button to halt the water pump drive system
• Lockable weatherproof Toolbox

Key benefits and features

SUITABLE FOR WET ENVIRONMENTS

• Marine grade mdg15 wiring and harness as standard
• Hot dipped galvanised frame
• Corrosion proof tank options

BUILT FOR LESS DOWN TIME

• Pressure relief valve to prevent pump burn out
• In built pto cut off to protect hydraulics and pump
• Pneumatic open, spring closed valves
• Fan cooled hydraulic water pump

DESIGNED FOR EASY MAINTENANCE

• Removable cam lock spray heads
• Central fuse box and standard deutsch connector wiring harness
• Modular design for easy replacement and upgrade
• Roll grooved pipework joins (not welded)

FOCUS ON SAFETY AND COMPLIANCE

• Civil and Mine site specifications available to meet safety and compliance requirements across Australia
• Risk assessment available from factory
• Cap-res certification available from factory
• Back-flow certification available from factory

FLEXIBLE AND ERGONOMIC USE

• 360 Degree spray adjustment
• In-cab adjustable pump, independent of engine revolutions
• Rear controls with ergonomic lower height rear control panel

READY TO WORK FROM DAY ONE

• Factory fitted on site in the largest purpose built water truck manufacturing facility in Australia
• Every Allquip truck is available with all required compliance and certifications from factory. Your asset arrives ready to work on day one

Optional Extras (Add-on)

• Water cannon
• Halo system
• Foam system
• Additional storage and equipment lockers
• External fire fighting pump

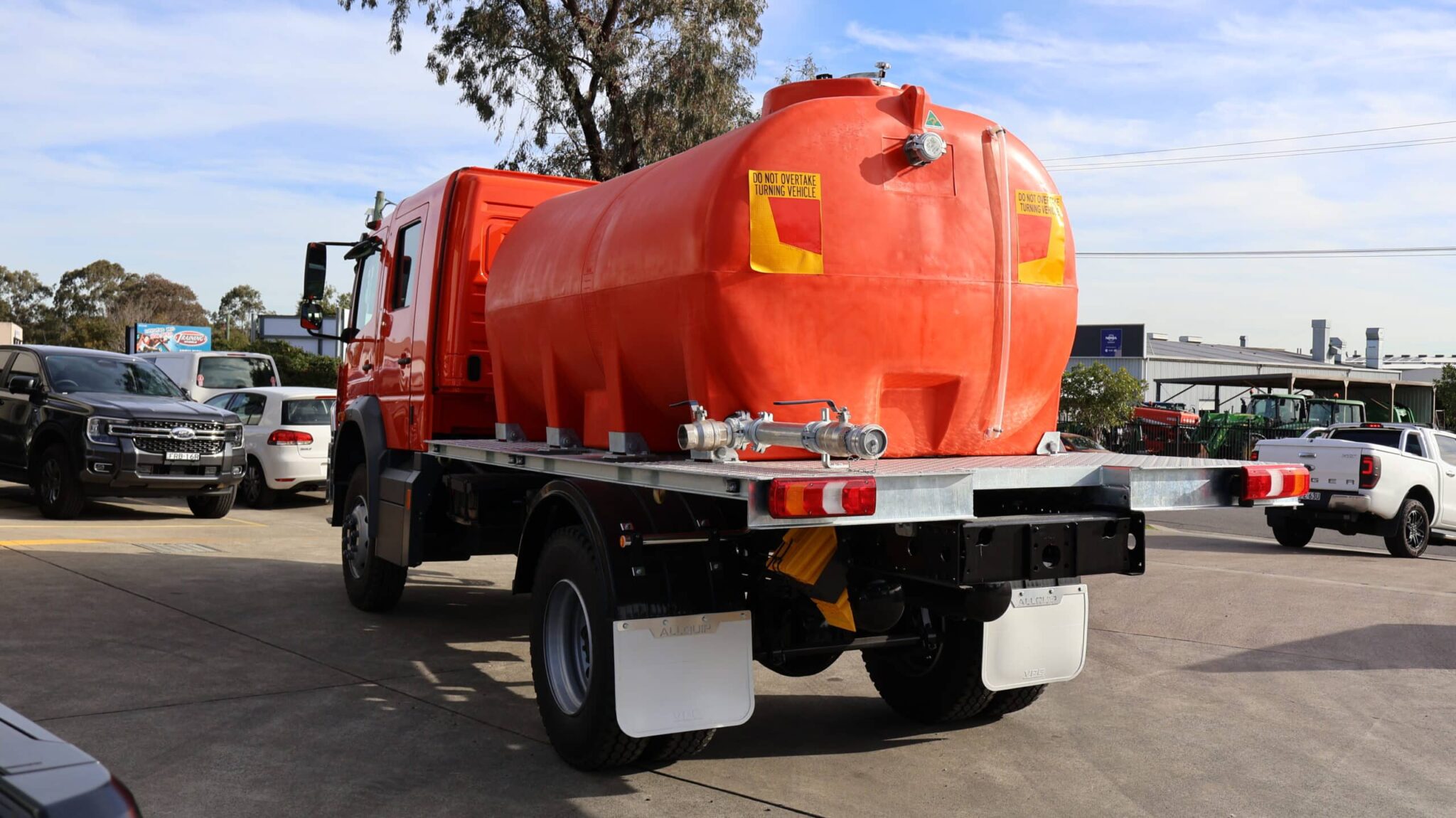

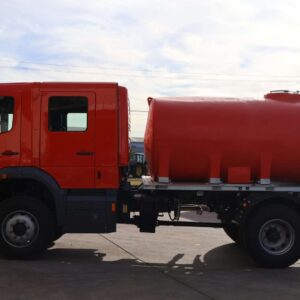

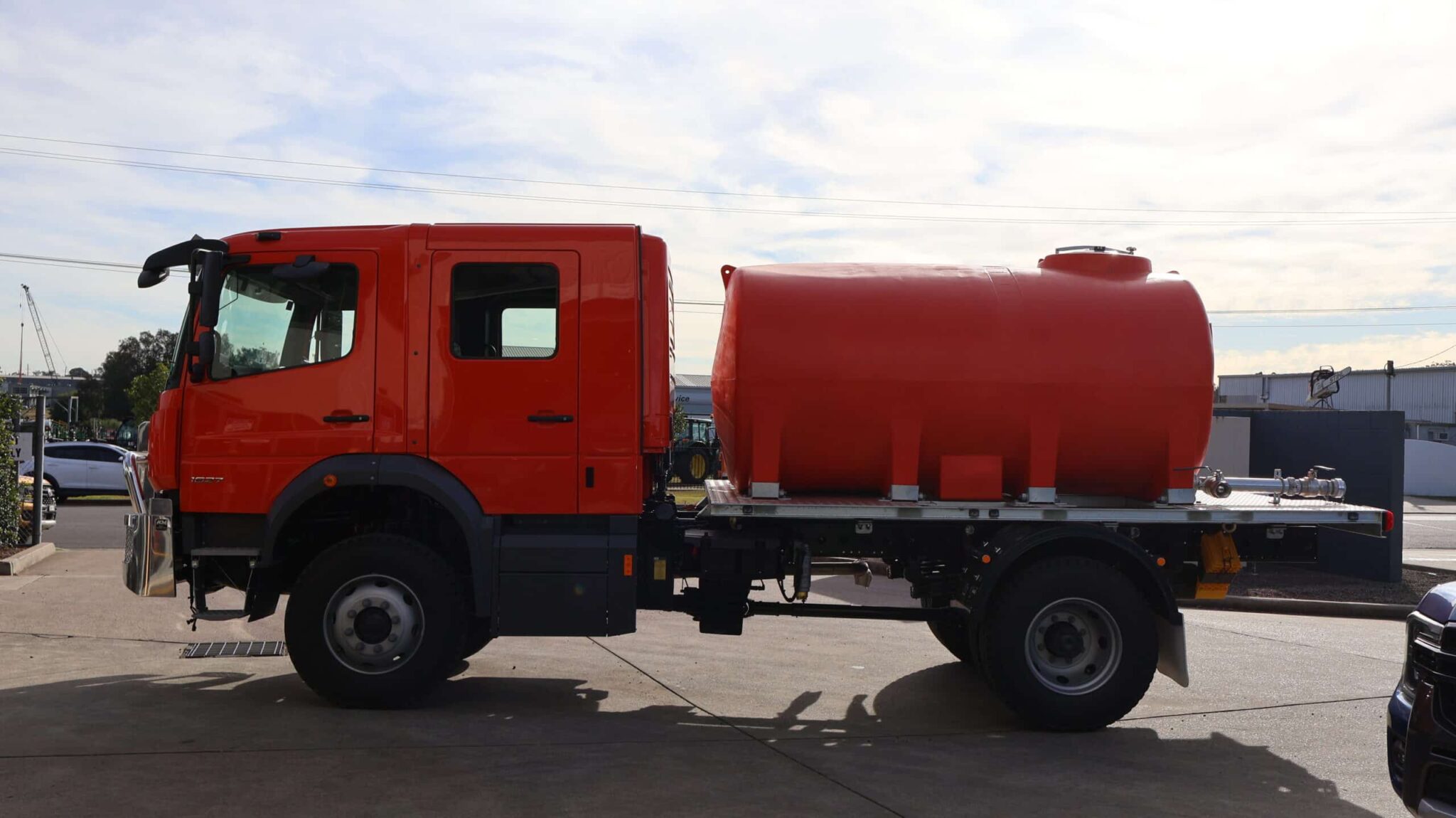

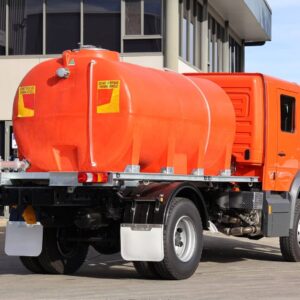

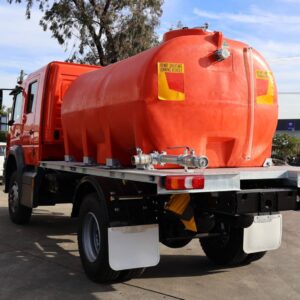

Polyethylene 7,700L Fire Tanker

Known as the Allquip Mother Tanker, the 7,700L polyethylene fire tanker is built to support frontline operations by delivering bulk water to firefighter and striker trucks. Made from polyethylene, the tank is corrosion proof, impact resistant, and lightweight – ensuring higher payload capacity with less strain on the vehicle. Backed by more than 25 years of design refinement, this model provides reliable performance in demanding conditions.

Key Features:

• Storz couplings and firefighting hoses
• Purpose-built equipment storage lockers
• Primary and auxiliary pump systems
• Hydrant and suction fill capability

Designed for Minimum Down Time

Safe and Easy to Operate

Site Compliant from Day One

Short Lead Times

Have more specific needs? Speak to our team today about customising your build

Inclusions

Dimensions

Key benefits and features

SUITABLE FOR WET ENVIRONMENTS

• Marine grade mdg15 wiring and harness as standard
• Hot dipped galvanised frame
• Corrosion proof tank options

BUILT FOR LESS DOWN TIME

• Pressure relief valve to prevent pump burn out
• In built pto cut off to protect hydraulics and pump
• Pneumatic open, spring closed valves
• Fan cooled hydraulic water pump

DESIGNED FOR EASY MAINTENANCE

• Removable cam lock spray heads
• Central fuse box and standard deutsch connector wiring harness
• Modular design for easy replacement and upgrade
• Roll grooved pipework joins (not welded)

FOCUS ON SAFETY AND COMPLIANCE

FLEXIBLE AND ERGONOMIC USE

• 360 Degree spray adjustment
• In-cab adjustable pump, independent of engine revolutions
• Rear controls with ergonomic lower height rear control panel

READY TO WORK FROM DAY ONE

Optional Extras (Add-on)

• Water cannon
• Halo system
• Foam system
• Additional storage and equipment lockers
• External fire fighting pump
