Inclusions

• Fully baffled tank
• Mine-spec braided harness system throughout, using marine-grade wiring
• Hot-dip galvanised steel subframe
• Hot-shift PTO installed with configured safety parameters
• Hydraulic oil cooler system
• PTO engagement switches positioned in-cab and at the rear
• Close-coupled Southern Cross hydraulic water pump – 2,200LPM at 86PSI
• Ergonomic in-cab control panel for spray functions, PTO,
and safety systems
• Electronic pump speed controller, adjustable via in-cab controls
• Three 80mm rear-mounted deflector fan spray heads (left, centre, right)
• 20m Manual hose reel with adjustable nozzle
• 80mm underbody pressurised V-jet spray bar with 14 brass nozzles
• 80mm hydrant top-fill system & pump outlet with manual wafer valve
• Large funnel provided for overhead gantry filling
• Rear-positioned suction inlet for self-fill via water pump
• Suction and top-fill hose assembly kits supplied, including foot valve and strainer
• Hose storage with securing straps
• Rear Hella amber beacon and work light, operated via in-cab switches
• Hella LED tail and side marker lights mounted for protection
• Lockable weatherproof toolbox
• Internal and external emergency stop buttons

Key benefits and features

SUITABLE FOR WET ENVIRONMENTS

• Marine grade mdg15 wiring and harness as standard
• Hot dipped galvanised frame
• Corrosion proof tank options

BUILT FOR LESS DOWN TIME

• Pressure relief valve to prevent pump burn out
• In built pto cut off to protect hydraulics and pump
• Pneumatic open, spring closed valves
• Fan cooled hydraulic water pump

DESIGNED FOR EASY MAINTENANCE

• Removable cam lock spray heads
• Central fuse box and standard deutsch connector wiring harness
• Modular design for easy replacement and upgrade
• Roll grooved pipework joins (not welded)

FOCUS ON SAFETY AND COMPLIANCE

• Civil and Mine site specifications available to meet safety and compliance requirements across Australia
• Risk assessment available from factory
• Cap-res certification available from factory
• Back-flow certification available from factory

FLEXIBLE AND ERGONOMIC USE

• 360 Degree spray adjustment
• In-cab adjustable pump, independent of engine revolutions
• Rear controls with ergonomic lower height rear control panel

READY TO WORK FROM DAY ONE

• Factory fitted on site in the largest purpose built water truck manufacturing facility in Australia
• Every Allquip truck is available with all required compliance and certifications from factory. Your asset arrives ready to work on day one

Optional Extras (Add-on)

• Water Cannon
• Front sprays
• Side Sprays
• Arrow Board
• Roll over protection system
• Gantry
• Safety Rails
• Access Ladder

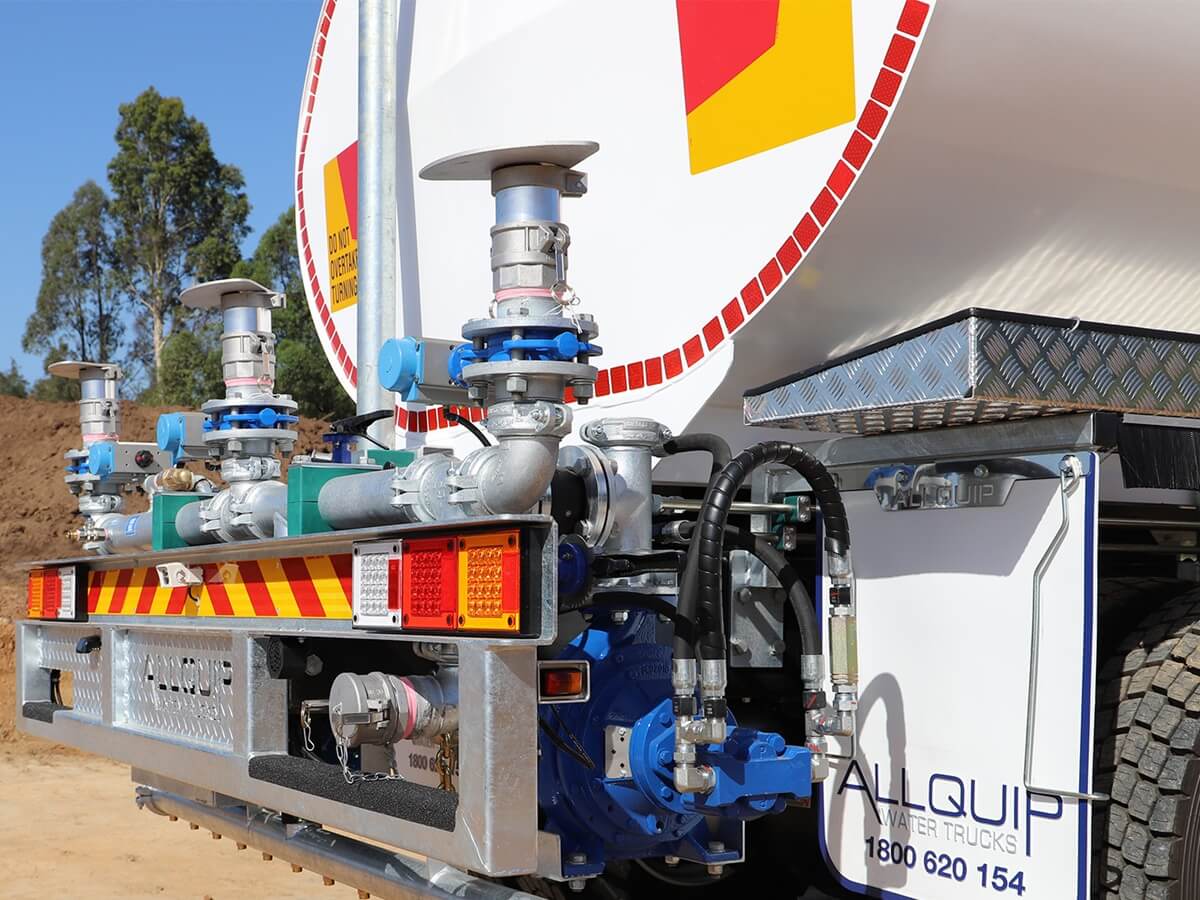

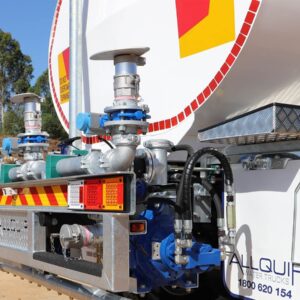

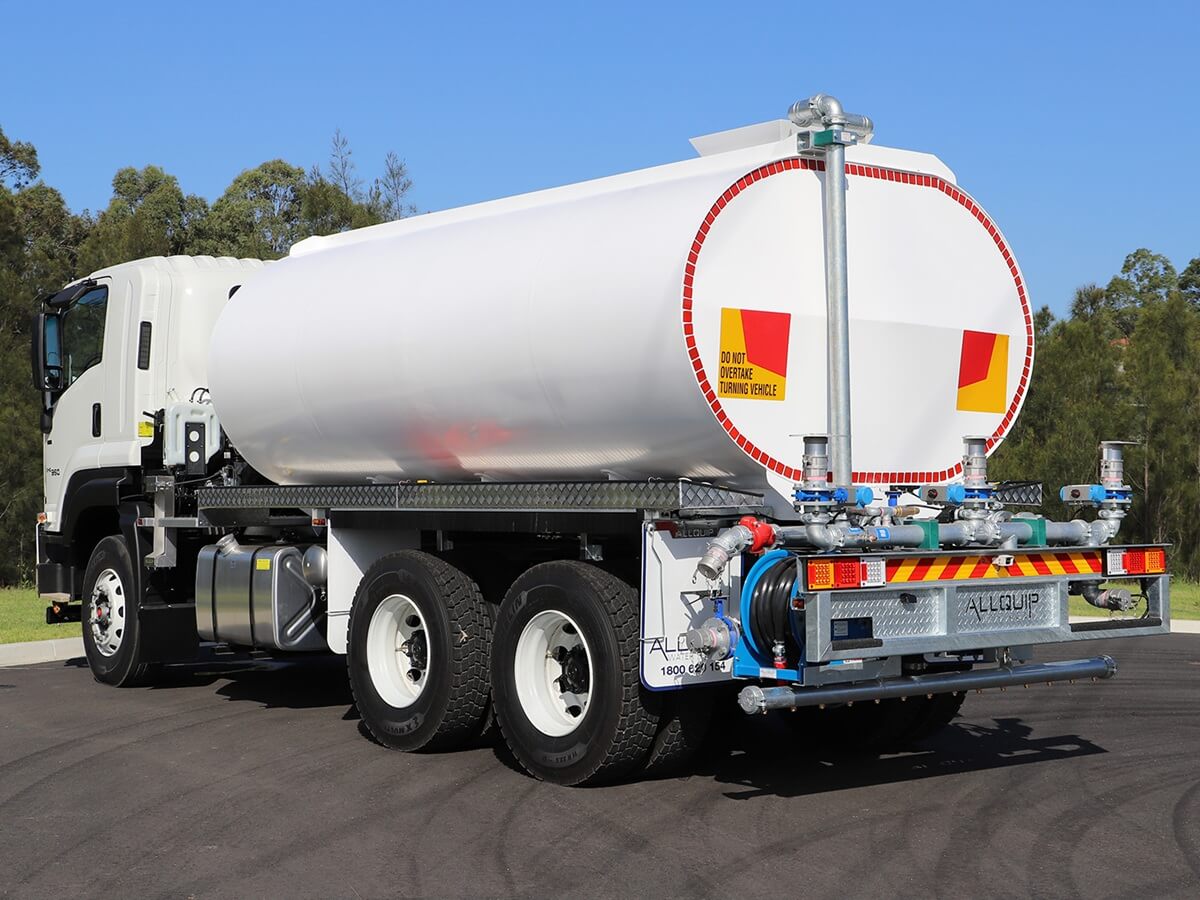

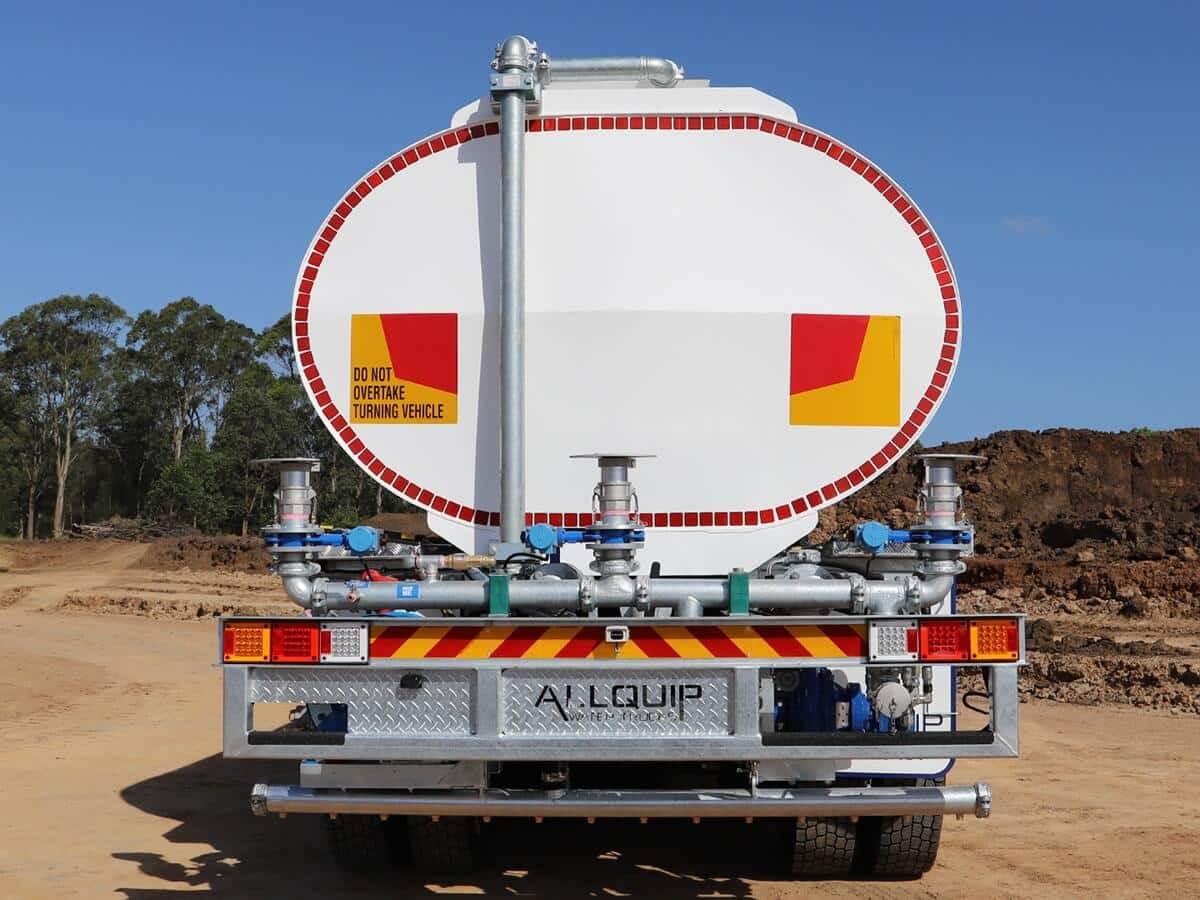

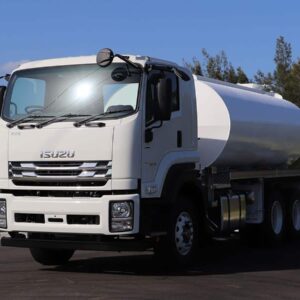

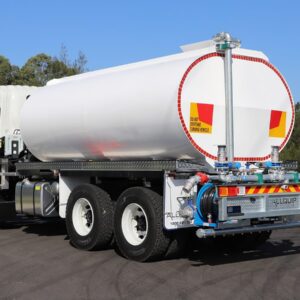

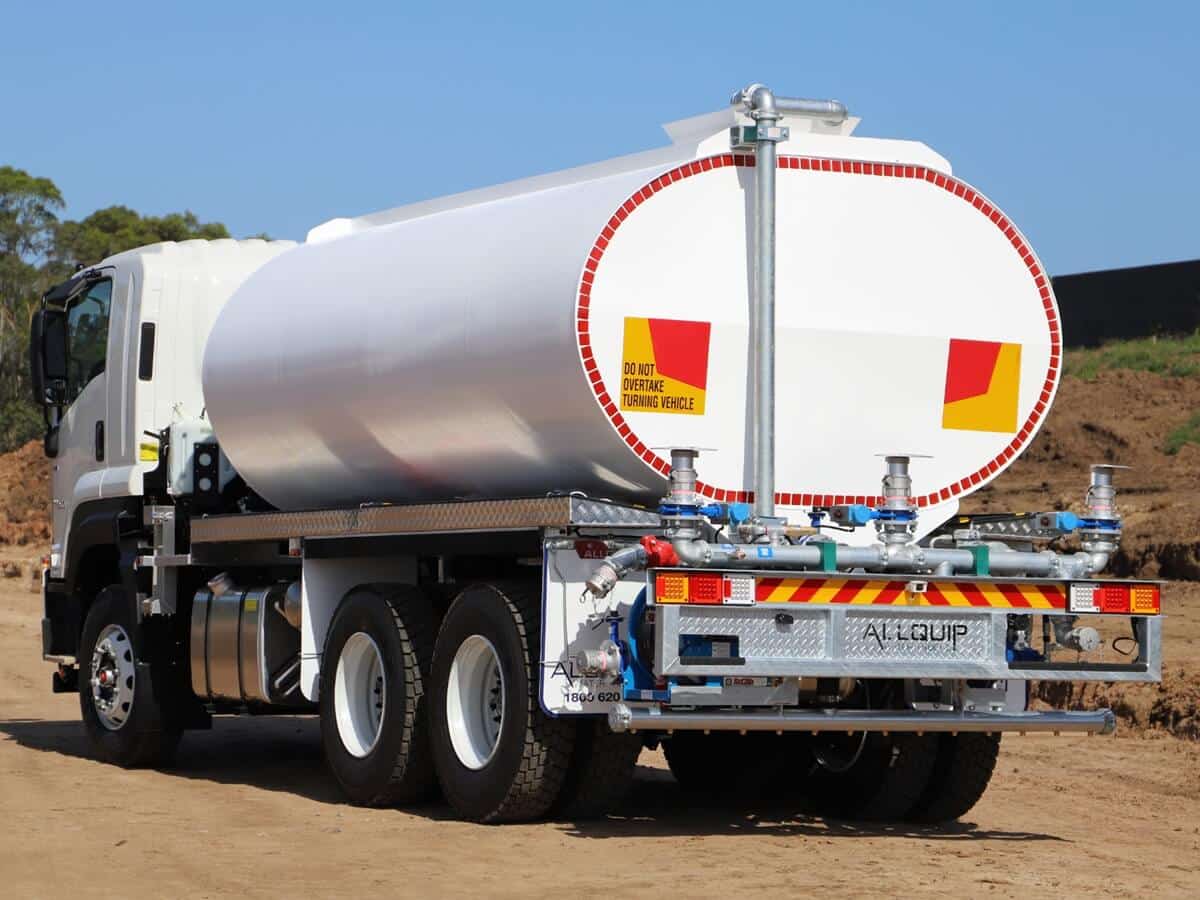

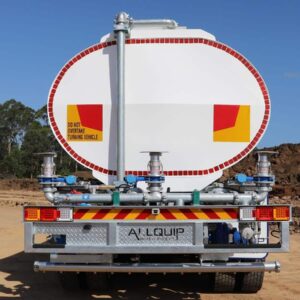

Aluminium 14,000L Water Trucks

Designed for larger-scale operations, the 14,000L aluminium water truck offers excellent carrying capacity while keeping weight low. The tank’s rust-proof aluminium build ensures years of dependable service, while modular fittings and baffled internals provide easy maintenance and safer operation. Assembled and fitted by Allquip’s qualified trades, this truck is work-ready from day one.

Key Features:

• Lightweight construction reduces stress on your chassis.
• Modular tank and fittings streamline repair and servicing.
• Baffle walls reduce surge, improving handling and stability.
• Aluminium tank resists corrosion for long-term performance.
• Rollgrooved pipework provides flexibility in use and maintenance.
• Designed for durability in Australia’s toughest environments.

Interested in customise your truck? Please select below:

Civil Series

+ −

Designed to meet the safety and compliance requirements of Tier 1 civil construction sites across Australia

Premium Features Plus:
• Cab Beacons
• Wheel nut indicators
• Dual Pole Battery Isolator
• 1.5 Kg Fire Extinguisher in-cab
• 9 Kg Fire Extinguisher
• Wheel Chocks
• GME UHF Radio
• First Aid kit
• Breakdown Triangles
Idea-sharing ideal efficiently myocardinate.
Ballpark value added Efficiently myocardinate.
Efficiently myocardinate Efficiently myocardinate.
Idea-sharing ideal efficiently myocardinate.
Ballpark value added Efficiently myocardinate.

Mine Series

+ −

MDG-15 compliance, with cap-res certification
from factory means that your asset can work on mine sites from the day of delivery.

Premium and Civil Specification Features Plus:
• Reflective Stripes
• Hydraulic Burst Protection Sleeving
• Starter Isolator
• Jump Start Receptacle
• Park Brake Door Alarm
• Asset Decals
• Max height decal
• Mine Spec Safety Stickers

Asset Protection

+ −

Designed to support field and safety teams to protect valuable assets in remote locations.

Premium Features Plus:
• In-cab blankets
• Additional storage
• Storz couplings
• Comprehensive rear control panel

Designed for Minimum Down Time

Safe and Easy to Operate

Site Compliant from Day One

Short Lead Times

Have more specific needs? Speak to our team today about customising your build

Inclusions

Dimensions

Key benefits and features

SUITABLE FOR WET ENVIRONMENTS

• Marine grade mdg15 wiring and harness as standard
• Hot dipped galvanised frame
• Corrosion proof tank options

BUILT FOR LESS DOWN TIME

• Pressure relief valve to prevent pump burn out
• In built pto cut off to protect hydraulics and pump
• Pneumatic open, spring closed valves
• Fan cooled hydraulic water pump

DESIGNED FOR EASY MAINTENANCE

• Removable cam lock spray heads
• Central fuse box and standard deutsch connector wiring harness
• Modular design for easy replacement and upgrade
• Roll grooved pipework joins (not welded)

FOCUS ON SAFETY AND COMPLIANCE

FLEXIBLE AND ERGONOMIC USE

• 360 Degree spray adjustment
• In-cab adjustable pump, independent of engine revolutions
• Rear controls with ergonomic lower height rear control panel

READY TO WORK FROM DAY ONE

Optional Extras (Add-on)

• Water Cannon
• Front sprays
• Side Sprays
• Arrow Board
• Roll over protection system
• Gantry
• Safety Rails
• Access Ladder

Prebuilt Models

Civil Series
Designed to get you on constructions sites across Australia

The Civil Series is purpose-built for Tier 1 construction sites, with compliance and safety features fitted from factory. These trucks arrive ready to operate, giving you confidence that your fleet will meet site standards and keep projects moving.

Fully compliant with Tier 1 civil site specifications and certifications

In-cab safety essentials including UHF radio, fire extinguishers, and first aid kit

Enhanced site visibility with cab beacons, wheel nut indicators, and warning signage

Built for operator confidence with wheel chocks, battery isolators, and breakdown triangles
Mine Series
Mine-ready trucks with built-in compliance and safety from day one.

The Mine Series delivers MDG-15 compliance and cap-res certification as standard, making it mine-site ready from the day of delivery. With built-in safety systems and site identification features, these trucks provide peace of mind in demanding mining environments.

Factory-certified MDG-15 compliance and cap-res approval

Hydraulic burst protection and starter isolator for safer operations

Enhanced visibility and safety with reflective stripes and mine spec stickers

Operational reliability with jump start receptacle, decals, and park brake door alarm
Asset Protection
Rugged protection for people, equipment, and assets in the toughest conditions.

Developed with Allquip’s Fire Division, the Asset Protection Series is designed to safeguard equipment and personnel in high-risk or remote locations. With integrated fire safety systems and rapid-response capability, it delivers reliable protection when it matters most.

Integrated in-cab fire blankets and additional safety storage

Storz couplings and rear control panel for rapid response

Designed to protect valuable assets in remote locations

Built for durability and field performance in demanding conditions

Designed to get you on constructions sites across Australia

The Civil Series is purpose-built for Tier 1 construction sites, with compliance and safety features fitted from factory. These trucks arrive ready to operate, giving you confidence that your fleet will meet site standards and keep projects moving.

Fully compliant with Tier 1 civil site specifications and certifications

In-cab safety essentials including UHF radio, fire extinguishers, and first aid kit

Enhanced site visibility with cab beacons, wheel nut indicators, and warning signage

Built for operator confidence with wheel chocks, battery isolators, and breakdown triangles

Mine-ready trucks with built-in compliance and safety from day one.

The Mine Series delivers MDG-15 compliance and cap-res certification as standard, making it mine-site ready from the day of delivery. With built-in safety systems and site identification features, these trucks provide peace of mind in demanding mining environments.

Factory-certified MDG-15 compliance and cap-res approval

Hydraulic burst protection and starter isolator for safer operations

Enhanced visibility and safety with reflective stripes and mine spec stickers

Operational reliability with jump start receptacle, decals, and park brake door alarm

Rugged protection for people, equipment, and assets in the toughest conditions.

Developed with Allquip’s Fire Division, the Asset Protection Series is designed to safeguard equipment and personnel in high-risk or remote locations. With integrated fire safety systems and rapid-response capability, it delivers reliable protection when it matters most.

Integrated in-cab fire blankets and additional safety storage

Storz couplings and rear control panel for rapid response

Designed to protect valuable assets in remote locations

Built for durability and field performance in demanding conditions
